Service Required Do Not Shift Gears: Causes & Fixes

Driving a vehicle is typically a pleasant activity until an error message appears on your dashboard display.

My initial experience with the “Service Required: Do Not Shift Gears” warning occurred with my 2015 Mercedes-Benz CLA250. I was attempting to exit the garage when the alert appeared, and the car wouldn’t start.

If you’re facing this error code and seeking guidance on its cause or solution, this article is here to assist!

We’ll explore the reasons behind this error message and provide steps to address it. Let’s dive in!

Table of Contents

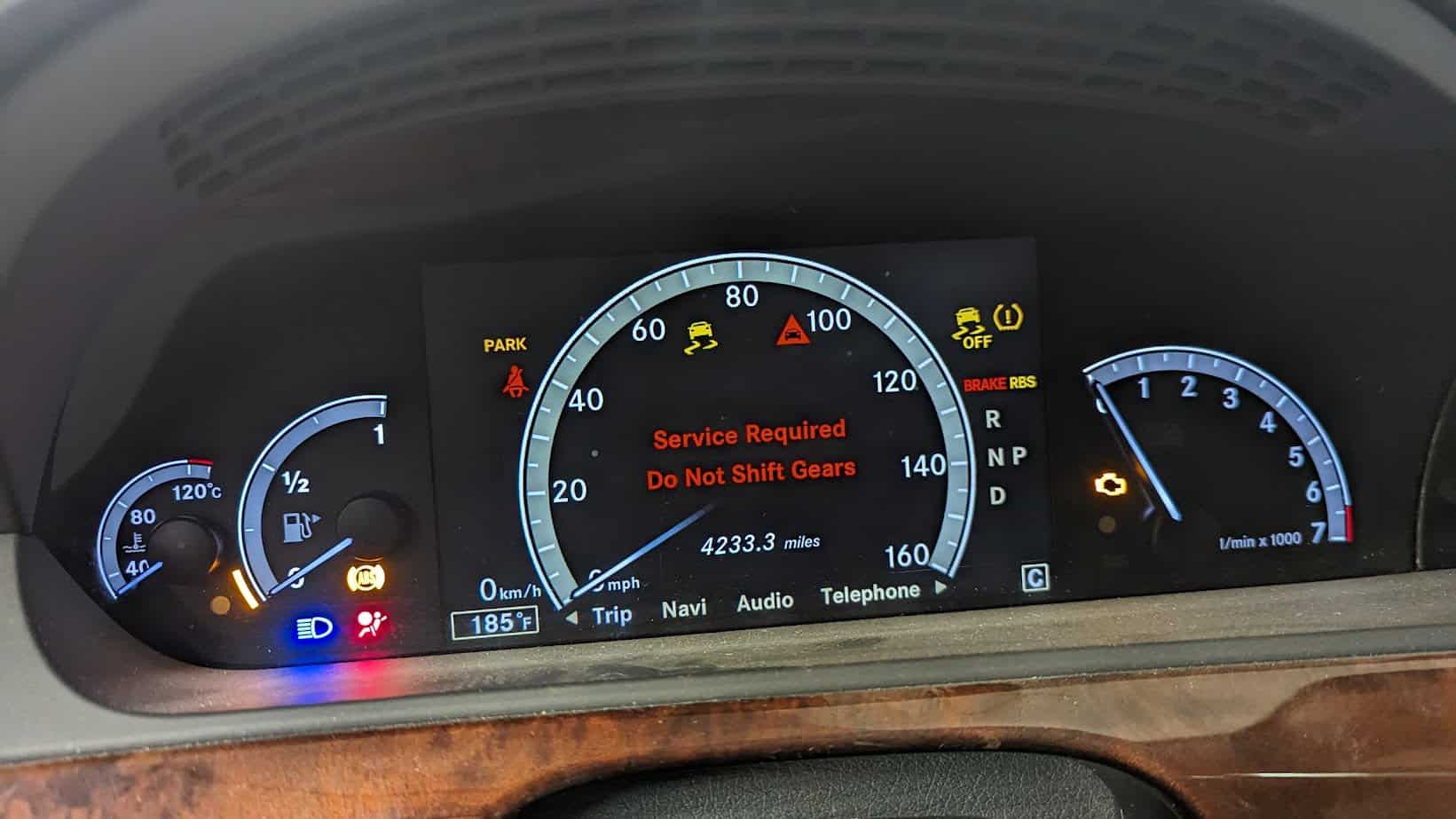

What Does “Service Required: Do Not Shift Gears” Mean?

The “Service Required: Do Not Shift Gears” warning typically indicates an issue within the transmission system, preventing the vehicle from shifting gears.

When this message appears on your dashboard, it often points to a malfunction in the Intelligent Servo Module (ISM).

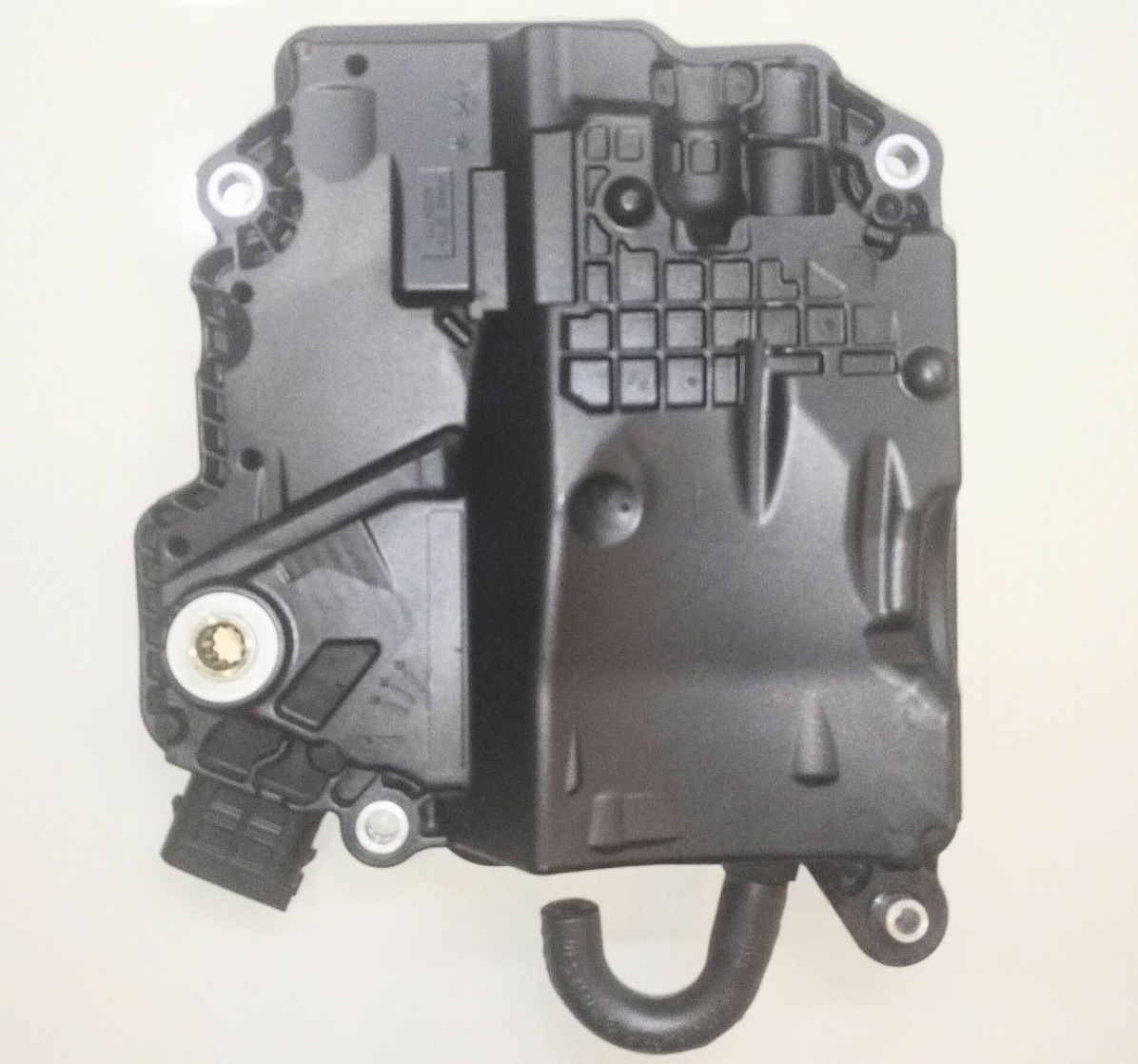

The Intelligent Servo Module (ISM) manages gear selection in Mercedes-Benz vehicles. It acts as a bridge between the transmission and other components, such as the Engine Control Unit (ECU) or gear selector.

The functions of the ISM include:

Gear Selection: The ISM interprets signals from the gear selector and communicates them to the transmission to engage gears like park (P), neutral (N), reverse (R), or drive (D).
Transmission Communication: The ISM facilitates interaction between the ECU and transmission for seamless gear transitions and operations.
Fault Detection: The ISM identifies and stores diagnostic codes related to transmission problems.

READ ⇒ Fixing ‘FCW System Failed’ in Your Honda Accord: A Guide

While the ISM is the primary culprit, other potential causes of this error will be covered later in this article.

Where Is the ISM Positioned?

The ISM, also referred to as the shift module, is located along the side of the transmission housing. Its precise position varies by vehicle model and year. Generally, accessing the module doesn’t require removing the transmission, but you’ll need to get underneath the vehicle.

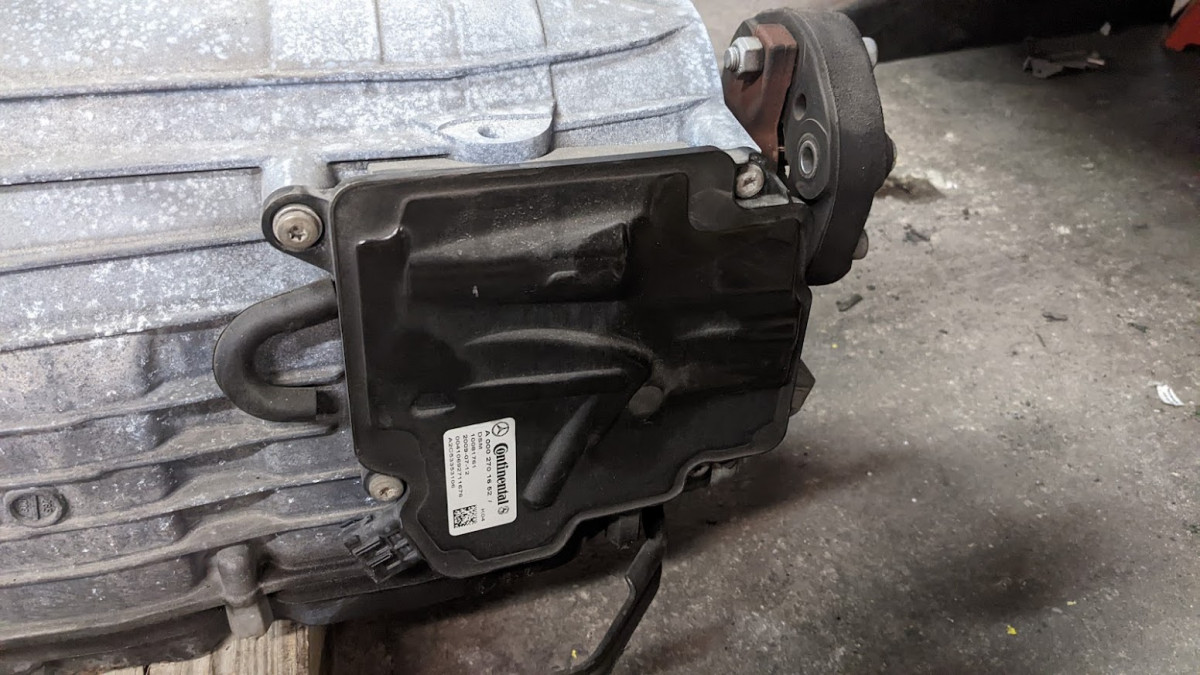

Location of the Intelligent Servo Module on a Mercedes-Benz transmission.

Other Reasons for “Service Required: Do Not Shift Gears”

Besides an ISM failure, several other issues could trigger the “Do Not Shift Gears” warning in your Mercedes-Benz. Below are some possible causes:

1. Faulty or Depleted Auxiliary Battery

A dead or failing auxiliary battery can also cause this error. This issue may be accompanied by the vehicle shutting off or struggling to start. To temporarily resolve it, turn off the car for a few seconds and restart it.

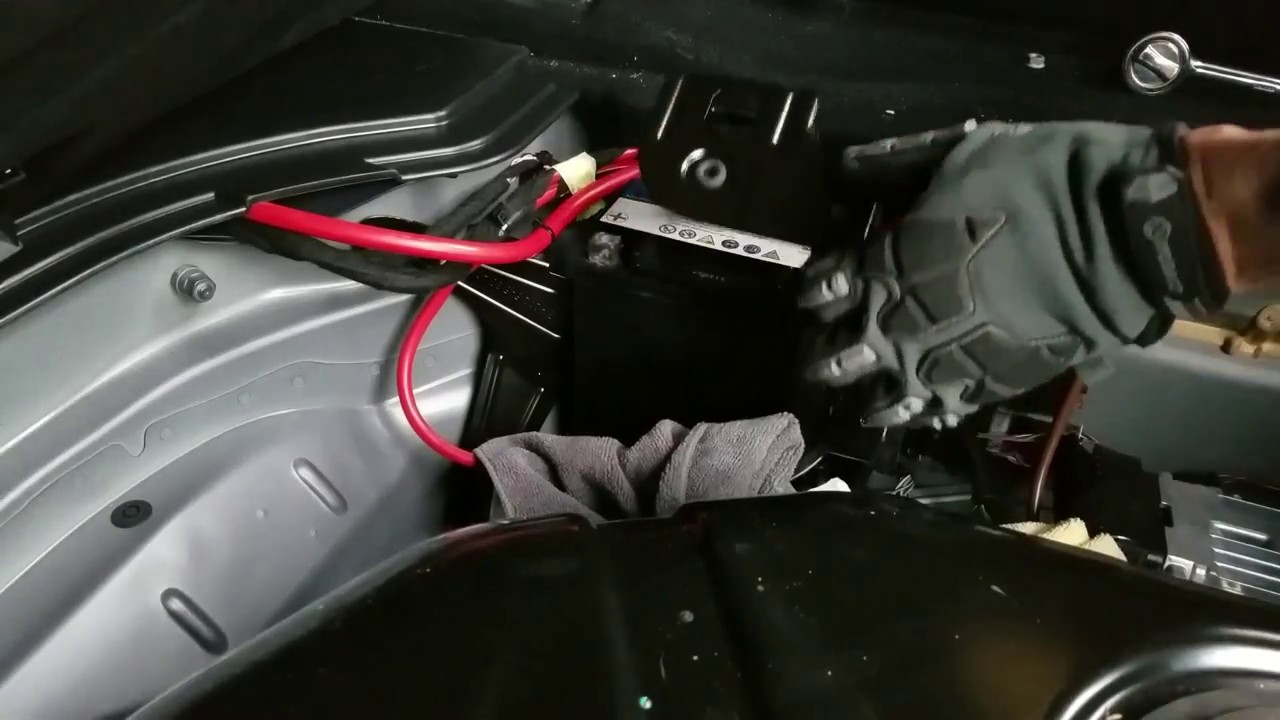

The auxiliary battery is typically found under the passenger-side carpet or near the glove box.

Many vehicles rely on the auxiliary battery to power components like the gear-shifting system. A faulty battery can disrupt the transmission system, including the ISM.

2. Software Glitches

Modern vehicles like Mercedes-Benz rely heavily on software. The ISM, being a software-driven module, can be affected by glitches or outdated firmware. Check for software updates for the relevant modules to address this issue.

READ ⇒ Functions of car exhaust pipe & what to do in case of leakage

3. Sensor Failures

The ISM and other modules depend on sensor data to relay information to the transmission. Faulty sensors can trigger the error message. Inspect sensors such as the Transmission Speed Sensor (TSS), Transmission Fluid Temperature Sensor (TFTS), Throttle Position Sensor (TPS), Vehicle Speed Sensor (VSS), and Transmission Range Sensor (TRS).

4. Transmission System Issues

The transmission system is critical for gear changes. Check for mechanical issues, worn gears, or a damaged transmission control module, as these can cause the warning to appear.

How to Resolve “Service Required: Do Not Shift Gears”?

Addressing the “Service Required: Do Not Shift Gears” error depends on its root cause. Before attempting repairs, it’s helpful to know how to reset the error message on your dashboard.

DONT MISS: Mercedes-Benz Starting Issues: Causes and Troubleshooting

How to Reset the Transmission on Your Mercedes-Benz?

This reset procedure applies to most Mercedes-Benz models, particularly those with 5-speed (722.6) or 7-speed (722.9) gearboxes. Follow these steps:

Turn the ignition key to position 2 without starting the engine.
Press and hold the gas pedal for 10 seconds.
Turn the key back to position 0 while slowly releasing the gas pedal, keeping the key in the ignition.
Wait at least two minutes with the key still in the ignition.
Start the vehicle, as the transmission should now be reset.
Drive the car for at least 15 minutes to allow the transmission to recalibrate.

READ ⇒ How To Buy Good & Cheap Cars In Nigeria Easily In 2025

Steps to Correct the Transmission Error on Your Dashboard

Step 1: Identify the Issue

Accurately diagnose the cause of the error. This may involve inspecting components physically and using an OBDII scanner to retrieve stored codes.

Step 2: Address the Cause

Once the cause is identified, take steps to fix it. If you’re not equipped to handle the repairs, consult a professional mechanic. Possible fixes include:

Repairing or replacing the transmission system if mechanical faults are found.
Updating software to resolve glitches or malfunctions.
Adjusting or repairing the clutch.
Fixing or replacing faulty sensors affecting gear shifts.
Replacing a damaged auxiliary battery.
Refilling transmission fluid as needed.

Step 3: Test Drive the Vehicle

After completing repairs, drive the vehicle for at least 15 minutes to confirm the issue is resolved and prevent recurrence.

Conclusion

The “Service Required: Do Not Shift Gears” error can be perplexing and tempting to ignore. However, addressing the issue promptly is crucial to avoid further vehicle damage. Don’t hesitate to seek professional assistance if you’re unable to resolve the error yourself.
