Imagine cruising down the highway in your trusty Toyota when, without warning, everything goes eerily quiet. The dashboard plunges into darkness, the radio falls silent, your power windows refuse to budge, and the engine might even stall. In that heart-stopping moment, the most likely villain is a small but critical component: the AM1 fuse. This high-amperage powerhouse quietly safeguards some of your vehicle’s most essential electrical circuits, and when it fails, the consequences can be dramatic.
In this comprehensive guide, we’ll explore the AM1 fuse in depth—what it is, why it matters, where to locate it, common failure symptoms, the root causes behind repeated blowouts, and expert-level troubleshooting steps that can save you time, money, and frustration. Whether you’re a seasoned DIY mechanic or a Toyota owner facing your first electrical mystery, you’ll walk away with the knowledge to diagnose and fix AM1-related issues confidently.

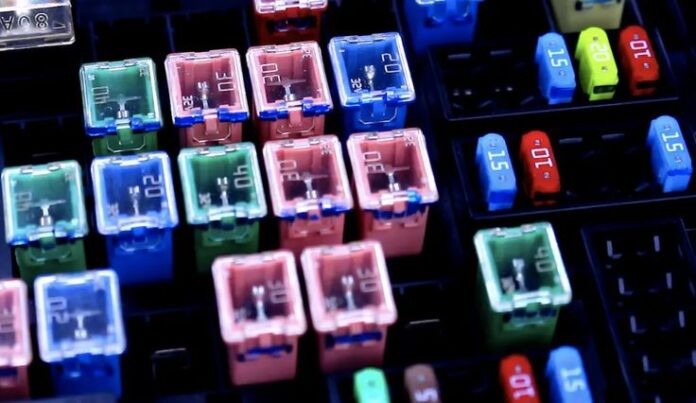

What Exactly Is the AM1 Fuse?
At its core, the AM1 fuse acts as a vigilant protector within your Toyota’s electrical architecture. Rated anywhere from 7.5 amps in some models up to a hefty 60 amps in others, this high-current fuse simultaneously shields multiple vital circuits from overloads, short circuits, and potentially catastrophic power surges. It’s the electrical equivalent of a dedicated security detail, ensuring that dangerous current levels never reach sensitive components.
Unlike standard low-amperage fuses that guard individual accessories, the AM1 fuse is a “master” fuse that oversees several key systems at once. When it blows, it’s not just one light or outlet that goes dark—it’s often an entire group of functions, which makes its failure so noticeable and disruptive.
Where to Find This Elusive Component
Locating the AM1 fuse is the first step toward resolving any related issues. Toyota engineers typically place it in one of two strategic spots:
- The engine compartment fuse box (often labeled as the “engine room fuse box” or “relay block”)
- Under the dashboard on the driver’s side in certain models
The exact amperage and location vary by model year and vehicle type. Here are some common examples:
- 30A – Frequently found in older Corollas, Tercels, and some Camrys
- 40A – Common in many Corolla variants
- 50A – Typical in 4Runners, Land Cruisers, and Tundras
- 60A – Used in larger or newer heavy-duty Toyota models
- 7.5A – Surprisingly, some 2010+ Corollas use a lower-rated AM1 fuse for specific accessory circuits
What the AM1 Fuse Protects
Despite its modest size, the AM1 fuse plays a pivotal role in keeping your Toyota’s essential functions alive. When it blows, you’ll often lose several of the following at once:
- Starter motor and ignition circuits
- Cigarette lighter/power outlets
- Power door locks
- Brake/stop lights
- Various accessory power systems (ACC and CIG circuits)
In many Toyota models, the AM1 fuse feeds power to downstream fuses labeled ST (starter), CIG (cigarette lighter), and ACC (accessory). This explains why so many systems fail simultaneously when it blows.
For instance, in a 2010 Toyota Corolla, the AM1 fuse (7.5A) directly protects the starting system, ACC, and CIG circuits. In Land Cruiser models, a higher-rated AM1 fuse safeguards all components tied to the ST, CIG, and ACC circuits.
Warning Signs of a Blown AM1 Fuse
A blown AM1 fuse rarely announces itself quietly. The symptoms are unmistakable and often strike without warning:
The Electrical Apocalypse
- Sudden total loss of power to multiple systems while driving
- Dashboard lights, gauges, and warning indicators go completely dark
- Power windows, locks, and other accessories freeze in place
- The engine may stall or refuse to restart after being shut off
- Radio, interior lights, and other electrical accessories go silent
Toyota owners on forums have shared chilling accounts: “I was driving and suddenly everything died—radio, dash, windows—everything.” Another wrote, “My 1986 Tercel just quit on the highway. Headlights stayed on, but the dash went black and the car wouldn’t restart.” These dramatic failures are classic signs that the AM1 fuse has given up.
The Replacement Nightmare
One of the most frustrating scenarios is replacing the blown fuse only to watch it blow again the instant you turn the key. This isn’t a defective fuse—it’s a clear signal that a deeper electrical fault remains unresolved. Ignoring this warning can lead to repeated failures, stranded drivers, and unnecessary expense.
Why Does the AM1 Fuse Keep Blowing?
The AM1 fuse never blows without a reason. Understanding the most common culprits helps you move beyond endless fuse replacements to a permanent fix:
1. Exposed Wiring Creating Short Circuits
By far the most frequent cause is damaged wire insulation that allows bare copper to contact metal surfaces, creating a direct short to ground. As Toyotas age—especially those exposed to heat, vibration, and time—the protective plastic coating on wires becomes brittle, cracks, and eventually flakes away.
One owner discovered the culprit was “a small patch of bare copper wire rubbing against the engine block.” Even a tiny exposed section can trigger repeated AM1 failures.
2. Alternator Wiring Problems
The alternator’s heavy-gauge cables carry high current and are prone to insulation wear, chafing, or loose connections. These faults often produce intermittent shorts that only appear under load or during specific driving conditions, making diagnosis tricky.
3. Starter-Related Issues
Starter solenoid wiring, especially the small trigger wires, can break or become loose inside the starter housing. A 4Runner owner found that “one side of the two-prong wire had broken free and was grounding against the case.” Once repaired, the AM1 fuse stopped blowing.
4. Age-Related Wire Degradation
Heat from the engine bay accelerates insulation breakdown. Over decades, wires that once flexed easily become stiff and prone to cracking. Owners of older Toyotas often report that “the plastic insulation gets brittle around the engine, cracks, and exposes the wire to ground.”
How to Troubleshoot AM1 Fuse Problems Like a Pro
Successful diagnosis requires a methodical approach. Follow these expert steps to pinpoint the cause efficiently:
Step 1: Identify Which Circuits Are Affected
Before you start pulling wires, make a detailed list of what stops working when the fuse blows. This narrows the search dramatically. If only the starter and accessories fail, you can focus on those circuits first.
Step 2: Perform a Visual Inspection of Wiring
With a good flashlight, inspect wiring bundles in high-risk areas:
- Near the engine block
- Around the alternator
- At the starter motor
- Anywhere exposed to extreme heat or vibration
Look for:
- Cracked, brittle, or melted insulation
- Wires touching metal surfaces
- Signs of rubbing or chafing
Step 3: Check Alternator Connections
A highly effective technique is isolating the alternator:
- Disconnect the alternator wiring harness
- Install a fresh AM1 fuse
- Turn the ignition to “ON” (don’t start the engine)
- If the fuse holds, reconnect the alternator wires one at a time until the fuse blows—this identifies the exact faulty connection
Step 4: Inspect Starter Wiring
Examine all starter connections for looseness, corrosion, broken terminals, or melted insulation. Pay special attention to the small solenoid trigger wires.
Step 5: Field Repairs for Emergency Situations
When you’re stranded and need a quick fix:
- Physically separate wiring from metal surfaces
- Wrap exposed sections with high-quality electrical tape
- Secure bundles with zip ties to prevent future contact
These are temporary measures only—schedule a permanent repair as soon as possible.
Preventing Future AM1 Fuse Failures
Proactive maintenance is the best defense against recurring AM1 problems. Here are proven prevention strategies:
Replace Aging Wiring Harnesses
For vehicles over 15–20 years old, replacing deteriorated wiring sections or entire harnesses is often the most cost-effective long-term solution. It’s far cheaper than repeated towing and repairs.
Use Protective Sleeving
Install high-temperature split loom or heat-resistant sleeving around critical wiring bundles. This simple upgrade dramatically extends wire life in the harsh engine bay environment.
Make Regular Inspections Part of Your Maintenance
Every 6–12 months, especially on older Toyotas, perform a quick visual check:
- Look for cracked or brittle insulation
- Check connections for corrosion or looseness
- Ensure wiring clears hot or moving components
- Watch for signs of rubbing or chafing
Real-World AM1 Fuse Success Stories
Toyota owners worldwide have conquered AM1 fuse mysteries with persistence and clever diagnostics:
One Tercel owner traced an intermittent short by methodically disconnecting the alternator, replacing the fuse, and reconnecting components one by one until the guilty wire revealed itself.
Another driver discovered that his AM1 fuse only blew when the engine vibrated in a specific way—caused by cracked insulation that only touched metal under load. After taping and rerouting the wire, the problem vanished permanently.
The Expert’s AM1 Fuse Replacement Procedure
Replace the AM1 fuse safely and correctly with these steps:
- Disconnect the negative battery terminal for safety
- Locate the correct fuse box and remove the blown AM1 fuse
- Inspect the fuse—a blown one shows a melted or broken metal strip
- Install an exact-match replacement (never use a higher amperage fuse)
- Reconnect the battery
- Test all affected systems
AM1 Fuse Specifications Across Toyota Models
| Toyota Model | AM1 Fuse Rating | Location | Protected Systems |
|---|---|---|---|
| Corolla (2010) | 7.5A | Engine Room Fuse Box | Starting system, ACC, CIG |
| Land Cruiser | 30A–50A | Engine Compartment | ST, CIG, ACC circuits |
| 4Runner | 50A | Engine Room Relay Block | Dashboard, starter, accessories |
| Tercel | 30A | Under Dash Fuse Box | Electrical system, accessories |
| Tundra (2014) | 60A | Engine Compartment | Multiple accessory systems |
Common AM1 Fuse Replacement Mistakes to Avoid
Using the Wrong Amperage Fuse
Never install a higher-rated fuse “just to get by.” It defeats the fuse’s protective purpose and can cause fires or damage expensive components.
Ignoring the Root Cause
Treating the fuse as the problem rather than a symptom is the fastest way to waste money. Always find and repair the short circuit.
Overlooking Intermittent Issues
Some faults only appear under vibration, heat, or load. Test thoroughly while driving to ensure the repair holds.
Skipping the Battery Disconnect
Always disconnect the battery before working on electrical systems to prevent accidental shorts or injury.
Tools You’ll Need for AM1 Fuse Diagnosis
Equip yourself with these essentials for efficient troubleshooting:
- Digital multimeter (essential for continuity and voltage tests)
- Fuse puller (usually included in the fuse box)
- Powerful flashlight or headlamp
- Assorted replacement fuses (including the correct AM1 rating)
- High-quality electrical tape
- Wire brush for cleaning connections
- Basic socket set and pliers
Understanding Your Toyota’s Electrical System
Your Toyota contains miles of wiring, dozens of relays, and sophisticated control modules working in harmony. The AM1 fuse is a key player in this network, protecting multiple circuits simultaneously. When it fails, the widespread symptoms are a direct result of its central role.
Modern Toyotas also feature advanced safety systems that may disable certain functions during electrical faults to prevent damage. This protective behavior can make diagnosis feel more complex, but it ultimately protects your vehicle.
When DIY Isn’t Enough: Getting Professional Help
While many AM1 issues are DIY-friendly, some require expert intervention. Seek a qualified automotive electrician if:
- You’ve replaced the fuse multiple times without finding the short
- The problem is intermittent and hard to reproduce
- You suspect damage to the ECU or other control modules
- Your vehicle has aftermarket modifications
AM1 Fuse Problems in Newer Toyota Models
Though older Toyotas suffer more from insulation breakdown, newer models aren’t immune. Recent reports include:
- Aftermarket audio or accessory installations causing shorts
- Water intrusion into fuse boxes or modules
- Software glitches in control units
- Factory wiring routing issues
Proper installation and protection against moisture are critical when adding accessories to modern Toyotas.
Mastering the AM1 fuse and its common failure modes empowers you to keep your Toyota running reliably for years to come. With patience, the right tools, and a systematic approach, you can turn what feels like an electrical nightmare into a straightforward fix—and drive with confidence once again.
