Seeing a “Service Trailer Brake System” alert on your Ram 1500? Don’t worry—you’re not the only one! This guide will help you understand what’s causing this warning and how to fix it, keeping your truck ready for the road. Many Ram 1500 owners deal with this issue, and we’ve got clear, simple steps to get you back to smooth, stress-free driving. Let’s dive in!
Getting to Know Your Ram 1500’s Brake System
The brake system in your Ram 1500 is vital for safe driving, especially when towing a trailer. This section explains the main parts of the system and why keeping your trailer brakes in top shape matters.
Key Parts of the Brake System

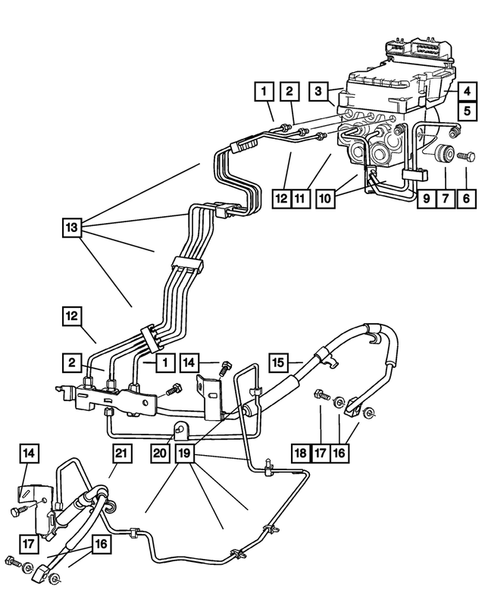

Your Ram 1500’s brake system has several critical components. The brake pads, rotors, and calipers work together to slow down or stop your truck when you press the brake pedal.
The Anti-lock Braking System (ABS) keeps your wheels from locking during sudden stops, helping you steer on slick roads. The electronic brake system partners with your truck’s computer for precise braking. If something goes wrong, like a faulty brake controller, you might see warning messages on your dashboard.
Why the Trailer Brake System Matters
When towing, the trailer brake system is a lifesaver. It makes sure the trailer’s brakes kick in at the same time as your truck’s, giving you the stopping power you need for heavy loads.
A well-maintained trailer brake system saves wear and tear on your truck’s brakes and helps avoid accidents. If there’s a problem, you might see alerts like “Service Trailer Brake System.” Routine checks keep both your truck and trailer brakes working safely, making every trip more secure.
Frequent Problems and Warning Messages
Ram 1500 owners often run into issues with the trailer brake system and see related error messages. Knowing what these warnings mean is key to keeping your truck safe and reliable.

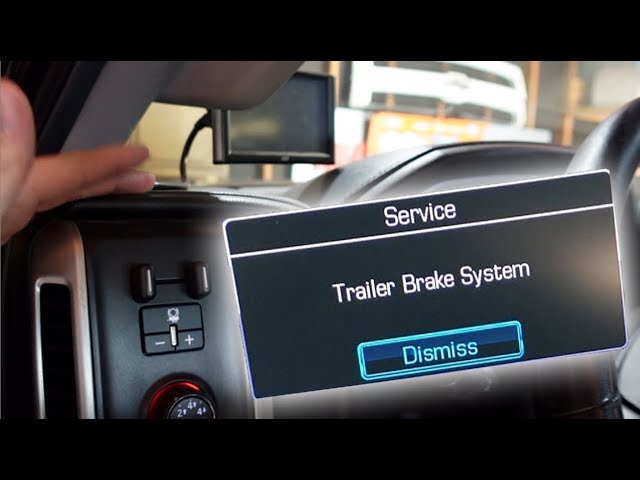

What the “Service Trailer Brake System” Warning Means
The “Service Trailer Brake System” warning could point to issues with the brake magnets, shoes, or drums. Inspect these parts and replace them if they’re worn out. Another common cause is a weak ground connection between your truck and trailer—make sure it’s secure. Low brake fluid can also trigger this alert, so check and refill if needed.
ABS and ESC Warning Lights
An ABS light suggests a problem with the anti-lock brake system, possibly due to a bad wheel speed sensor or loose wires. The ESC light indicates an issue with electronic stability control, which may be related. Check the sensors and wiring carefully, and if the lights stay on, consider getting help from a mechanic.
Understanding Error Codes
Error codes, like C121C, can reveal specific brake system issues. Use a diagnostic tool to read these codes and address problems early. Fixing them quickly can prevent small issues from turning into big repairs.
Fixing Trailer Brake System Problems
Troubleshooting trailer brake issues in your Ram 1500 involves checking a few key areas: the fuse box, wiring, and components like the wheel speed sensor and hydraulic control unit (HCU).
Inspecting the Fuse Box
Start by checking the fuse box, usually found under the dashboard or in the engine bay. A blown fuse can disable the trailer brake system. Your Ram 1500’s manual will show you which fuse controls the brakes.
Replace a blown fuse with one of the same rating to avoid damage. Test the system afterward to see if the warning clears. If not, move on to other checks.
Checking and Fixing Wiring
Faulty wiring can cause brake system issues. Look at the wires connecting your truck to the trailer for rust, corrosion, or loose connections. Use a multimeter to test the wiring’s continuity.
Repair or replace damaged wires, and ensure a solid ground connection between the truck and trailer. If problems persist, a professional may need to step in.
Wheel Speed Sensor and HCU Problems
The wheel speed sensor helps regulate braking by monitoring wheel speed. Check each sensor for dirt or damage and replace any that are faulty. The hydraulic control unit (HCU) works with sensors to apply brake force. If warnings point to HCU issues, a mechanic’s diagnostic tools can help identify the problem.
Keeping Your Ram 1500 Ready for Towing
To tow safely with your Ram 1500, maintain your brake system by replacing brake pads, checking fluid levels, and ensuring proper alignment.
Routine Brake System Maintenance
Regularly inspect your trailer brake system to avoid issues. Check brake pads for wear and replace them if they’re thin. Monitor brake fluid levels and refill as needed. Ensure the trailer brakes sync with your truck’s brakes, and inspect wiring for damage or corrosion to keep connections secure.
Brake Pads and Fluid Replacement
Worn brake pads reduce stopping power, so replace them if they’re thin or making noise. Brake fluid should be clear—replace it every 24,000 to 36,000 miles or if it looks dirty to keep brakes responsive.
Aligning Your Truck for Better Towing
Proper alignment ensures stable towing. Misaligned wheels can wear tires unevenly and affect handling. If your truck pulls to one side, get a professional alignment. Check tire pressure, too, as low pressure can worsen alignment issues and reduce towing performance.
Smart Features for Easier Towing
Your Ram 1500 comes with features to make towing safer and simpler, like the Integrated Trailer Brake Controller and Cruise Control. Understanding the Service 4WD and ECOdiesel systems also helps.

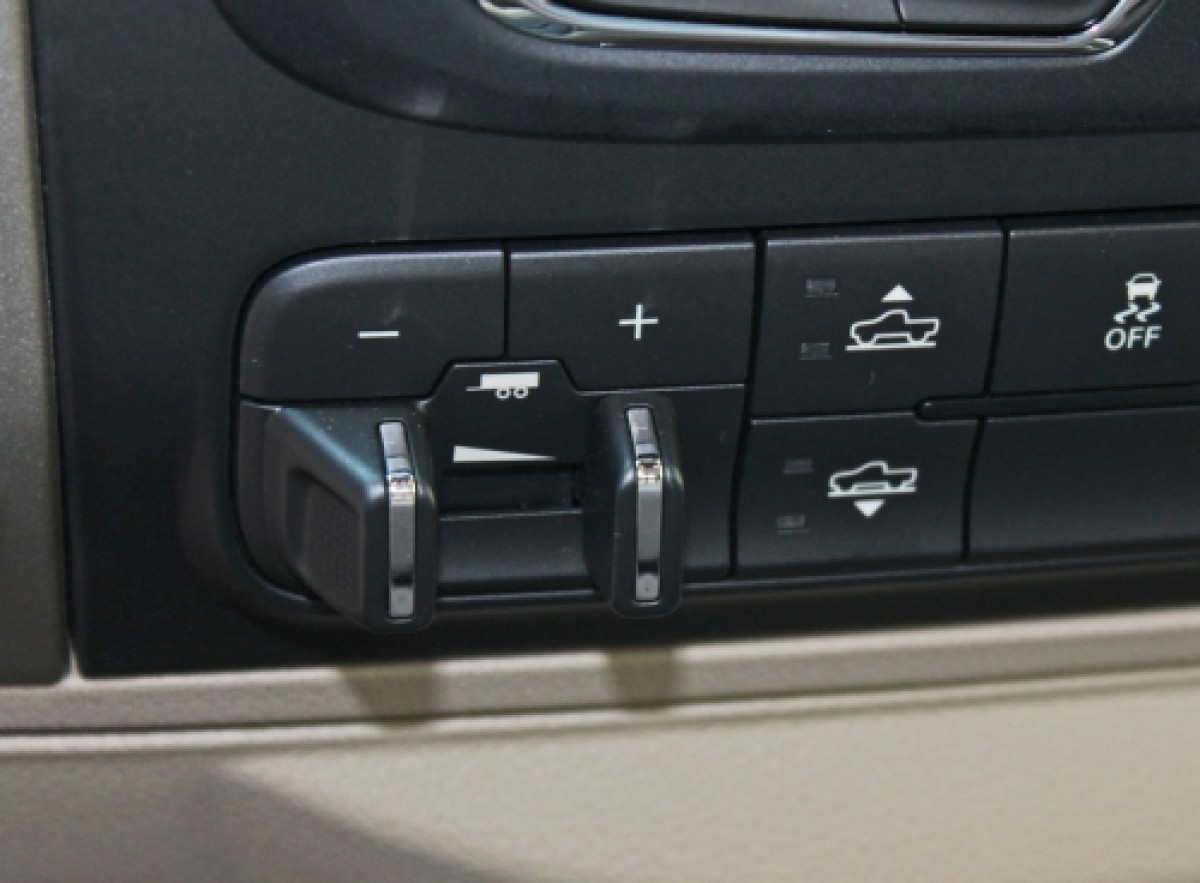

Integrated Trailer Brake Controller
The Integrated Trailer Brake Controller syncs your trailer’s brakes with your truck’s, improving control. Adjust the brake gain from the dashboard to match the trailer’s weight, ensuring smooth braking in different conditions.
The controller’s display lets you monitor the brake system easily, giving you confidence while towing.
Cruise Control for Towing
Cruise Control helps maintain a steady speed while towing, reducing fatigue and saving fuel. It adjusts for the trailer’s weight, especially on hills. Use it on open roads with stable conditions, but stay alert for weather or traffic changes that might require manual control.
