Understanding the Toyota Highlander PWR Mode

The Toyota Highlander’s Power (PWR) mode enables the vehicle to consume additional fuel, allowing for quicker acceleration and increased engine output. To activate PWR mode, locate the button on the dashboard, near the audio or climate controls, or select it from the vehicle’s menu system.

What is the Toyota Highlander PWR Mode?

Toyota has engineered numerous innovative technologies to enhance driver safety and comfort, including a selection of hybrid vehicles in its lineup.

The Toyota Highlander stands out as one of these hybrid models, equipped with the distinctive PWR mode feature.

Like other Toyota hybrids, such as those in the Prius family, the Highlander includes PWR mode as a key feature.

What exactly is PWR mode, and why is it significant for hybrid vehicles?

PWR mode, often referred to as Power mode, keeps the internal combustion engine running at higher revolutions.

With the engine active, the throttle responds more swiftly, consuming more fuel but delivering smoother and faster acceleration.

Numerous videos on YouTube showcase how PWR mode enhances acceleration compared to standard driving mode, enabling even larger vehicles like the Highlander to gain speed rapidly.

Activating PWR Mode in Your Highlander

Now that you understand the benefits of PWR mode, you may want to engage it manually on occasion. The activation process varies depending on the Highlander’s model and year.

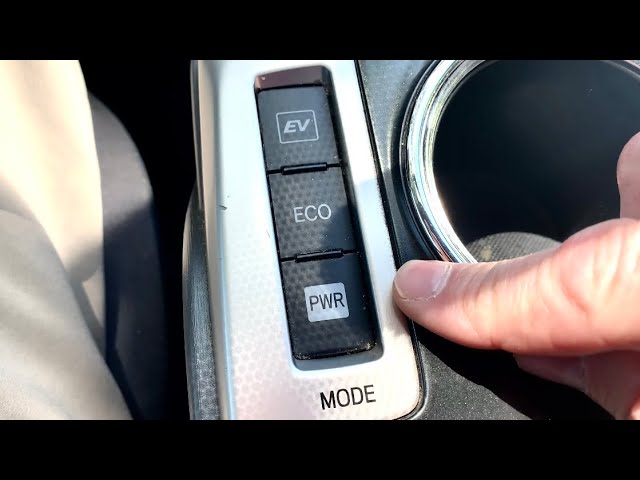

In some Highlander models, a PWR mode button is located near the radio, on the steering wheel, or close to the gear shift. Others require accessing PWR mode through the console’s digital menu.

After enabling PWR mode, allow approximately 15 seconds for the system to fully engage, at which point you’ll notice faster acceleration.

Deactivating PWR mode also requires a brief delay, as the throttle gradually returns to its standard setting.

Eco Mode vs. PWR Mode

In PWR mode, also called Power mode, the throttle allows more fuel into the engine’s combustion chamber, resulting in faster and smoother acceleration.

In contrast, Eco mode reduces engine power, limiting acceleration speed to conserve battery energy and reduce fuel consumption.

Troubleshooting Toyota Highlander PWR Mode

PWR mode activates automatically upon starting the engine – Normally, PWR mode should deactivate when the vehicle is turned off and not re-engage on its own.

This issue may stem from a stuck PWR button, which sends a signal to the Electronic Control Unit (ECU) upon startup.

If PWR mode is accessed via the console’s digital menu, the issue could be due to a software malfunction.

Resetting the Highlander’s ECU can clear corrupted data or settings, disabling automatic PWR mode activation. Be sure to recalibrate the braking system after an ECU reset.

PWR mode fails to activate – When PWR mode is turned on, a dashboard indicator light should illuminate.

If the light doesn’t appear, PWR mode is likely not functioning, possibly due to a faulty connector preventing activation.

For this issue, consult a Toyota-certified mechanic, as replacing the PWR switch or connector requires professional expertise to ensure proper reassembly.

Delayed acceleration when pressing the pedal – In PWR mode, there should be no lag between pressing the accelerator and the vehicle speeding up.

A delay may indicate a clogged air filter or a dirty throttle body. Air filters trap dirt and debris, but over time, they can become obstructed, restricting airflow to the engine.

Cleaning the air filter improves its ability to capture debris while allowing air to flow freely, enhancing engine performance.

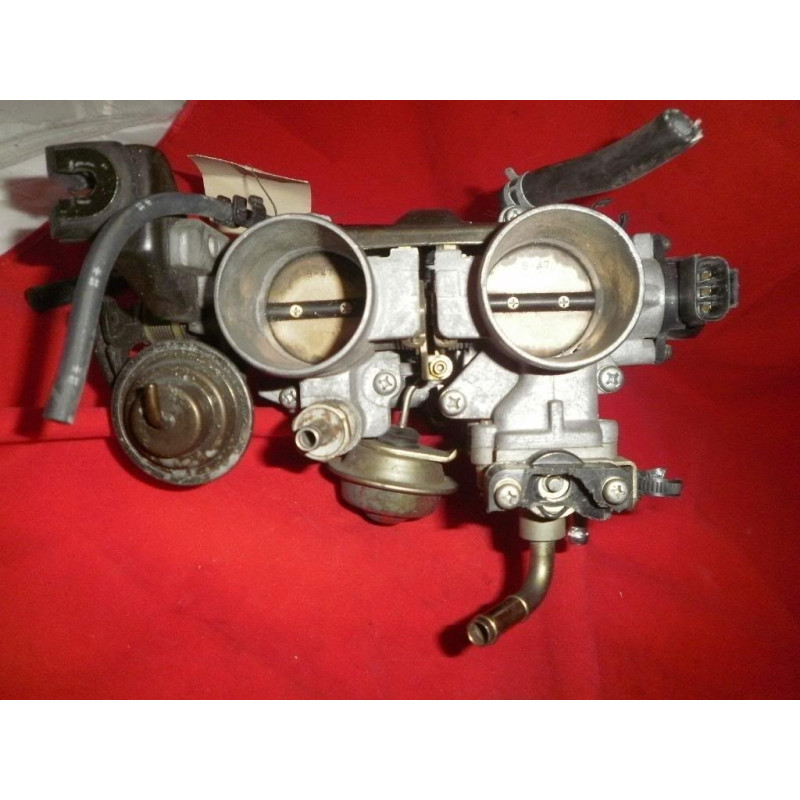

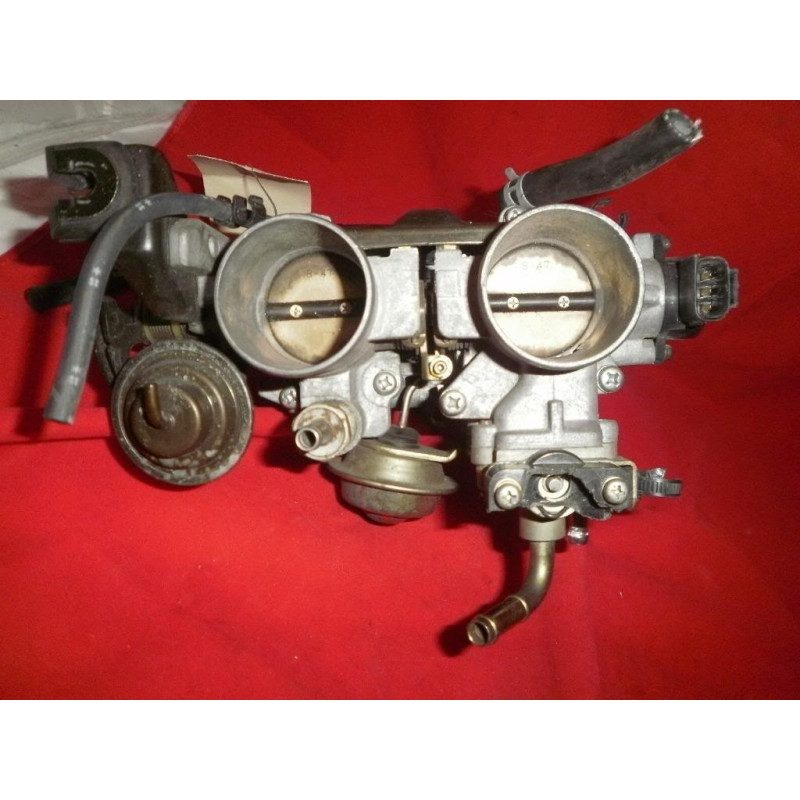

If the throttle body is the issue, it may be dirty, damaged, or broken. A dirty throttle body slows the throttle door’s response to pedal input.

Cleaning and re-oiling the throttle body can resolve this, but a damaged or broken throttle body requires immediate repair or replacement, which may cost up to $650.

Is It Safe to Drive If PWR Mode Malfunctions?

Driving your Highlander is entirely safe even if PWR mode is not functioning.

PWR mode only affects acceleration speed when active and does not impact the braking system. When off, the vehicle operates in normal or Eco mode.

However, identifying the cause of a PWR mode malfunction is important for future use, as it could result from faulty wiring or a defective throttle sensor.

Final Thoughts

The Toyota Highlander’s PWR mode enhances acceleration, using more fuel for smoother performance. It should not activate automatically upon starting the vehicle.

If there’s a delay between pressing the accelerator and the vehicle responding, common causes include a dirty or damaged throttle body or a clogged air filter.
