Your car is remarkably good at telling you when something is wrong. It speaks through sounds, vibrations, smells, and the way it feels to drive. The transmission is one of those systems that communicates very clearly when it needs attention, if you know what to listen for.
Transmission fluid is not something most drivers think about until a problem develops. But like engine oil, it degrades over time, picks up contaminants, and eventually loses its ability to do the job it was designed for. When that happens, the transmission suffers. And transmission repairs are not cheap. Catching the warning signs early and staying on top of fluid changes is one of the most cost-effective maintenance habits you can build.
Table of Contents
What Is Automatic Transmission Fluid and What Does It Do?
Automatic transmission fluid (ATF) is a specially formulated oil designed exclusively for vehicles with automatic gearboxes. You will usually recognise it by its color, it is typically dyed bright red or green to distinguish it from engine oil and other fluids under the hood.
But ATF does much more than simply lubricate moving parts. It serves several critical functions simultaneously:
- Hydraulic pressure generation: Automatic transmissions are hydraulically operated. The fluid creates the pressure that allows the transmission to select and hold gears. Without adequate fluid at the right pressure, the gearbox simply cannot function.
- Lubrication: The transmission contains gears, clutch packs, bearings, and dozens of other metal components that need continuous lubrication to prevent wear and overheating.
- Cooling: ATF absorbs heat generated by the transmission and carries it to the cooler, which is often integrated with the radiator. Without adequate fluid, heat builds rapidly and can cause serious internal damage.
- Cleaning: Good quality ATF contains detergent additives that help suspend contaminants and prevent deposit buildup in the transmission’s delicate passages and valves.
When the fluid degrades or becomes contaminated, which happens gradually through normal use, all four of these functions are compromised simultaneously. That is why ATF condition matters so much more than most drivers realize.
Why Does Transmission Fluid Need to Be Changed?
As your automatic transmission operates, it generates tiny metal particles from the normal friction between its moving components. These particles accumulate in the fluid over time. The fluid also degrades chemically, its viscosity changes, its additive package depletes, and it loses the ability to maintain the precise hydraulic pressure the transmission needs to shift correctly.
Contaminated fluid thickens in some areas and thins in others. It struggles to maintain the correct lubrication film on metal surfaces. Deposits start forming in the narrow oil passages and valve body that control gear changes. The result is a transmission that shifts harder, slower, and less predictably than it should, until eventually it stops shifting correctly at all.
Changing the fluid before it reaches this state of degradation is straightforward and relatively inexpensive. Rebuilding or replacing a transmission that has been starved of proper lubrication is neither of those things.
When Should You Change the Transmission Fluid?
There is no single universal answer, because the correct interval depends on several variables:
- Type of transmission: Automatic gearboxes generally require more frequent fluid changes than manual ones, due to the hydraulic nature of their operation and the greater thermal and mechanical stress the fluid is subjected to.
- Driving intensity: A car used for delivery driving, taxi work, towing, or any other high-stress application will need fluid changes more frequently than a vehicle used purely for private commuting.
- Manufacturer specification: This is your most reliable guide. Your owner’s manual will list the recommended change interval for your specific vehicle. Volkswagen, for example, recommends changing transmission oil every two years on many of their models. Other manufacturers have different intervals, some shorter, some longer.
As a general rule, transmission fluid should be changed no later than every 25,000 miles or annually as a preventive measure, whichever comes first. But do not wait for the interval if the car is showing you symptoms. When the signals are there, act on them promptly.
5 Warning Signs That Your Transmission Fluid Needs Attention Now
1. Gears Are Difficult or Sluggish to Change
In a healthy automatic transmission, gear changes are smooth, almost imperceptible, and happen at the right moment for the driving conditions. When the fluid is degraded or low, you start to notice gear changes happening with a delay, the gearbox hesitating before engaging the next gear, or changing at odd moments that do not feel right for your speed or throttle position.
In manual transmissions, degraded fluid can make gear selection feel stiff, notchy, or in severe cases, genuinely difficult to engage. If the gear lever requires noticeably more effort than usual, or resists going into certain gears, the fluid is worth checking immediately.
2. Grinding, Whining, or Scraping Noises During Gear Changes
A transmission that is well-lubricated and operating correctly is essentially silent during gear changes. Any grinding, scraping, or whining noise during a shift is the sound of metal components that are not being separated by the adequate fluid film they need.
These noises are not just unpleasant, they are a signal of active wear happening inside the gearbox. The longer you continue driving with those sounds present, the more damage accumulates. If you hear this, check the fluid level and condition as soon as possible. Low level, dark color, or a burnt smell means a fluid change is needed urgently.
3. Unexplained Lurching or Jerking While Driving
If the car suddenly lurches forward or jolts without any corresponding input from the accelerator or brake pedal, contaminated transmission fluid is a very likely cause. The fluid’s job is to maintain smooth, consistent hydraulic pressure throughout the transmission. When it is contaminated with debris or deposits, that pressure becomes erratic, causing the transmission to engage or disengage unpredictably, which you feel as a sudden, unexplained movement of the vehicle.
This is not just uncomfortable, it is potentially dangerous, particularly at speed or when the car is surrounded by other traffic. Dirty fluid that causes erratic transmission behavior should be treated as an urgent problem, not something to monitor over a few more weeks.
4. Delayed Response After Selecting a Gear
When you select Drive or Reverse, or when the transmission changes gear while driving, the response should be immediate. You select the gear, the car moves. That is how it should work. When the fluid is heavily contaminated, the disruption to normal hydraulic flow means there is a noticeable delay between the gear selection and the transmission actually engaging it.
A delay of a second or two might seem like a minor annoyance. But it indicates that the transmission is struggling to build the hydraulic pressure needed to engage the gear clutch pack. Longer delays, several seconds or more, suggest serious contamination that needs addressing immediately. In some cases, this delay can extend to the transmission not engaging the gear at all.
5. The Transmission Slipping Out of the Selected Gear
This is one of the most alarming transmission symptoms, and it happens when contamination or deposits interfere with the pressure sensors and hydraulic pathways that are responsible for keeping the selected gear engaged. The transmission unexpectedly drops out of the gear it should be holding, leaving you momentarily without drive, often with a noticeable rev flare from the engine as the load disappears.
Gear slipping can happen randomly and without warning. It is both a safety concern and a sign that the transmission is under significant stress. If this is happening, do not continue driving and hoping it resolves itself. Get the vehicle to a workshop and have the fluid checked and changed as the first step in diagnosis.
It is worth noting that if a fluid change resolves these symptoms, that is excellent news, straightforward and relatively inexpensive. If the symptoms persist after a fluid change, the underlying transmission mechanisms need a more thorough inspection. But the fluid change is always the right first step.
How to Check Your Transmission Fluid Level and Condition
Knowing how to check your own transmission fluid is a genuinely useful skill. Here is the process, step by step.
Step 1: Check Whether Your Car Has a Dipstick
Start by consulting your owner’s manual. Many older and mid-range vehicles have a transmission fluid dipstick under the hood, much like the engine oil dipstick. However, a growing number of modern vehicles, particularly those from Ford, Toyota, GM, and many European manufacturers, have moved to sealed transmission units with no dipstick. These require electronic diagnostic equipment to check properly and are not something you can check at home.
If your car does not have a transmission dipstick, the recommendation is to have the fluid level checked professionally at least twice a year, and more frequently if the car is used intensively.
Step 2: Locate the Transmission Dipstick
If your vehicle does have a dipstick, it is usually shorter than the engine oil dipstick and often has a red or yellow handle. Its location varies by drivetrain configuration:
- Rear-wheel drive vehicles: The transmission dipstick is typically located on the side of the engine bay closest to the passenger seat.
- Front-wheel drive vehicles: It is usually located on the driver’s side, near the transaxle where the transmission and drivetrain meet.
If you cannot locate it by sight, the owner’s manual will show you exactly where to look.

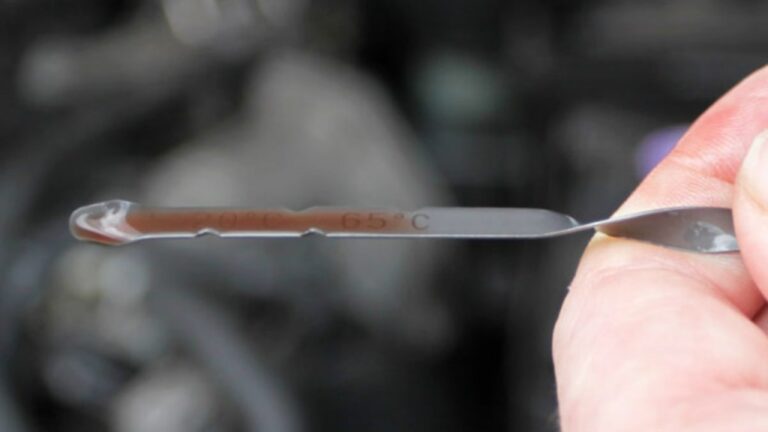

Step 3: Check the Level and Condition
For an accurate transmission fluid reading, the engine should be running and the fluid should be at normal operating temperature. This is different from checking engine oil, which is done with the engine off and cold.
- Pull out the dipstick and wipe it clean with a lint-free cloth.
- Reinsert it fully and leave it for about five seconds.
- Pull it out again and read the level against the markings. The fluid should sit between the minimum and maximum marks.
- While you have the dipstick out, look at the fluid on it and smell it.
What Good and Bad Transmission Fluid Looks Like
| Fluid Appearance | What It Means | Action Required |
|---|---|---|
| Bright red or pink, semi-transparent | Fluid is in good condition | No change needed yet |
| Light brown, slightly murky | Fluid is aging but functional | Plan a change soon |
| Dark red or brown, opaque | Fluid is significantly degraded | Change required promptly |
| Black, with gritty texture | Fluid is heavily contaminated with metal particles | Immediate change and transmission inspection |
| Pink and milky or foamy | Water or coolant contamination | Urgent professional inspection — serious problem |
| Burnt smell, any color | Fluid has been overheated — additive breakdown | Change required immediately |
The color test is one of the quickest and most reliable ways to assess fluid condition without any specialist equipment. Make it a habit every time you check your engine oil.
Topping Up the Fluid Level
If the level is low, top it up using the fluid type specified in your owner’s manual. This is important, not all ATF is interchangeable, and using the wrong type can cause shift quality problems or damage seals. Add the fluid gradually through the dipstick tube using a funnel, checking the level after each small addition.
One thing worth noting: if you need to add more than approximately one liter of fluid to reach the correct level, something is wrong. That much fluid does not simply evaporate. Look carefully for signs of a leak under the vehicle, transmission fluid on the ground will be reddish or brownish in color depending on its condition. A leak needs to be found and fixed, not just topped up repeatedly.
How to Change the Automatic Transmission Fluid
This is a job that confident home mechanics can tackle, but it is more involved than an engine oil change. Here is what the process involves:
Step 1: Drain the Old Fluid
The most thorough method involves disconnecting the transmission cooler line, the line that runs between the transmission and the radiator. Attach a length of rubber hose to the disconnected line and place the other end over a suitable collection container. Start the engine and let it run. The transmission pump will push the old fluid out through the cooling line into your container. Watch carefully and stop the engine as soon as the flow drops to a trickle, before the system runs dry and risks drawing air. Reconnect the cooler line securely before proceeding.
Step 2: Remove and Clean the Transmission Pan
The transmission pan sits on the underside of the gearbox and holds a reservoir of fluid. Remove the bolts securing it, expect residual fluid to spill as you do, so have a drain tray positioned underneath. Once removed, clean the pan thoroughly, removing any metal particles or sludge that have collected in it. The presence of a small amount of fine metallic sediment is normal. Large metal flakes or chunks are not, they indicate internal wear that warrants a more thorough inspection.
Step 3: Replace the Filter
The transmission filter is located inside the pan, typically clipped or bolted to the valve body. Remove the old filter and discard it. A new filter is essential, do not reassemble with the old one. The filter is the first line of defense against contaminants circulating through the hydraulic system, and a clogged filter is a direct cause of the pressure and shift quality problems described earlier.
Step 4: Replace the Gasket and Reinstall the Pan
Fit a new pan gasket to ensure a leak-free seal. Reattach the pan and tighten the bolts progressively in a cross pattern to ensure even compression of the gasket. Tighten firmly but do not over-torque, excessive force can strip threads, crack the pan, or distort the gasket, all of which cause leaks.
Step 5: Fill With New Fluid
Add the new fluid through the dipstick tube using a clean funnel. The transmission typically holds between 2 and 2.5 liters, but check your owner’s manual for the exact specification for your vehicle. Start the engine and cycle through each gear position, P, R, N, D, pausing a few seconds in each to allow the new fluid to circulate. Then recheck the level with the engine running and top up as needed to reach the correct mark on the dipstick.
Always use the fluid type specified by your manufacturer. The most common general-purpose ATF is Dexron III, but many modern vehicles require a proprietary fluid specific to that manufacturer or gearbox design. Using the wrong fluid, even briefly, can cause seal damage and shift quality deterioration. When in doubt, check the manual first and match the specification exactly.
Automatic vs. Manual: Does the Same Advice Apply?
Manual gearboxes use a different type of gear oil, and their maintenance requirements differ from automatics in a few important ways. Manual transmissions are typically factory-filled and do not need fluid topping up under normal circumstances, they do not have a dipstick in most designs. The fluid only needs changing if a repair or overhaul has been carried out, or if the vehicle is displaying symptoms that point to a gearbox issue.
Automatic transmissions are a different matter entirely. They run hotter, work under greater hydraulic stress, and accumulate contamination faster. They need more frequent attention, and the consequences of neglecting the fluid are more immediate and more severe.
The symptoms and checks described in this article apply primarily to automatic gearboxes. If you drive a manual and are experiencing shift quality problems, the causes are more likely to be clutch wear, linkage issues, or gear synchronizer wear rather than fluid degradation, though having the fluid inspected as part of any gearbox diagnosis is still sensible.
Why Maintaining Transmission Fluid Protects Your Entire Drivetrain
It is easy to think of the transmission as an isolated system, but it is deeply connected to the rest of the drivetrain. An automatic transmission that is not shifting correctly changes how power is delivered to the wheels, which affects traction, fuel economy, and how the engine is loaded. In severe cases, transmission problems can cause the engine to run in the wrong RPM range for the driving conditions, accelerating wear across multiple systems simultaneously.
Transmission fluid maintenance is one of the most straightforward preventive measures available to any car owner. The fluid itself is inexpensive. The labor for a fluid change is modest. The cost of ignoring it, a rebuilt or replaced automatic transmission, can run anywhere from $1,500 to $5,000 or more depending on the vehicle. That arithmetic makes a very compelling case for keeping on top of it.
If your car is speaking to you through any of the symptoms described above, difficult shifts, strange noises, unexpected jolts, delayed responses, do not wait for the problem to resolve itself. It will not. Check the fluid first, and if it is dark, smells burnt, or the level is low, get it changed. You may solve the problem entirely with a single, straightforward service visit.
