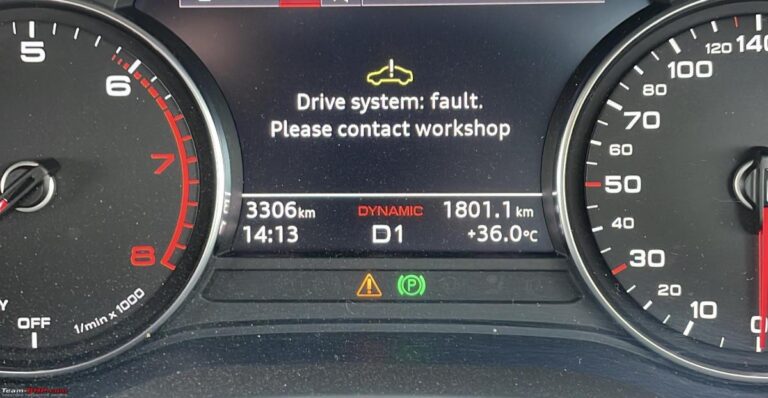

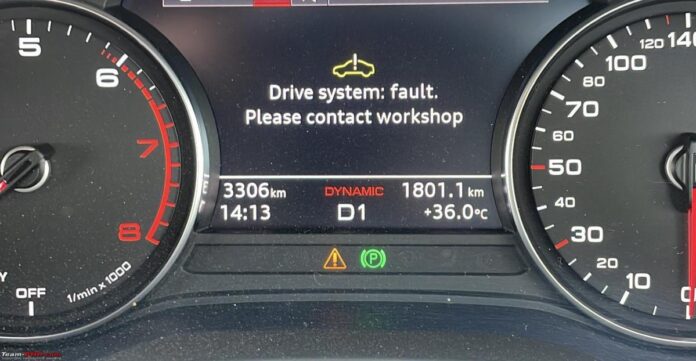

Seeing “Drive System Malfunction” appear on an Audi dashboard is the kind of message that instantly changes the mood of a drive. One moment you’re cruising normally; the next you’re wondering whether the car will still accelerate, whether it will shift correctly, or whether it’s about to shut down and strand you in an inconvenient (or unsafe) spot.
Here’s the most important thing to know right away: this warning is not one single diagnosis. It’s your Audi’s way of saying that the powertrain control network has detected a condition that could compromise performance, safety, emissions compliance, or component protection. Sometimes the cause is small (a coil pack misfire). Sometimes it’s expensive (a DSG mechatronic unit). And in some recent model years, it can be a known weak point (the 48‑volt Belt Starter Generator system).
The good news is that you can approach this warning calmly and systematically. With the right process, you can avoid “dealer roulette,” where parts get replaced based on assumptions instead of evidence. In this guide, I’ll explain what the warning really means, what failures most commonly trigger it, how to prioritize diagnosis, and how to decide whether you can keep driving, need to schedule service, or should stop immediately.
We’ll also cover what Audi has already acknowledged through recalls and service actions, what you should ask a shop to check, and how to protect yourself from unnecessary repairs.
What the Drive System Malfunction Warning Actually Means
Your Audi’s drive system malfunction warning is best understood as an umbrella alert. It is triggered when one or more modules that control propulsion (engine, transmission, mild-hybrid system, torque distribution, and related electronics) detect operation outside expected limits. The car is not simply “complaining.” It is executing a protection strategy.
Modern Audis use what engineers call a torque-based control model. Instead of only reacting to a throttle pedal position, the system treats the accelerator as a request for torque. The PCM/ECM then calculates and commands the torque output by managing boost, fuel, ignition, valve timing, transmission shift pressure, clutch engagement (DSG), and sometimes electric assist (48V mild-hybrid systems). If the system requests a torque value but cannot achieve it—or if sensor signals don’t agree with each other—the car will illuminate warnings and may reduce power.
Unlike a simple “low washer fluid” warning, this message typically appears when the system detects any of the following:
- Torque mismatch: commanded torque ≠ achieved torque (underboost, overboost, throttle deviation, clutch slip).
- Sensor plausibility issues: sensor readings contradict each other or exceed expected limits (MAF/MAP disagreement, wheel speed mismatch, voltage instability).
- Module communication faults: CAN-bus or LIN-bus messages missing, corrupted, or delayed (gateway, powertrain bus errors).
- Component protection events: overheating, low oil pressure signals, cooling system anomalies, or high exhaust temperature strategies.
When this happens, the car may enter limp mode (also called “reduced power mode”). Limp mode isn’t a punishment—it’s the vehicle’s way of preventing a minor fault from turning into catastrophic damage. Symptoms of limp mode can include reduced acceleration, limited RPM, limited boost, a transmission that refuses to shift aggressively (or locks into a safe gear), and reduced top speed.
In other words: your Audi is telling you, “I can still move, but I’m not going to run at full output until I’m confident the conditions are safe.”
The warning itself is not enough to diagnose the problem. The next step is to retrieve fault codes and freeze-frame data with a capable tool (preferably VAG-capable). Generic code readers often miss manufacturer-specific subcodes that clarify what actually happened.
First Response: What to Do the Moment You See the Warning
Before diving into model-specific problems, here’s the professional “triage” sequence—because the correct response depends on symptoms.
- Note what the car is doing right now. Is it losing power? Misfiring? Shaking? Overheating? Stalling? These details matter more than the text on the screen.
- Look for red warnings. If you see red oil pressure, red temperature, or serious electrical system failure messages, treat it as “stop safely and shut down.”
- If the car is in limp mode but stable, avoid hard acceleration and high speeds. Drive gently to a safe location or a shop.
- If the engine is misfiring (especially flashing CEL), reduce load immediately. Continued driving can damage catalytic converters rapidly.
- Document the warning. Photograph the dash message and record the circumstances (temperature, speed, acceleration). This helps diagnosis and is valuable for repeat-failure documentation.
A single drive system warning can be triggered by something as simple as low voltage. But if it comes with shaking, smoke, coolant smells, or repeated stalling, don’t “test it” by continuing to drive—those symptoms indicate the potential for expensive secondary damage.
The 48-Volt System Failure That’s Plaguing Recent Audis
If you own a 2019–2024 Audi, there’s a strong chance your drive system malfunction is related to the 48‑volt mild-hybrid architecture—specifically the 48‑volt Belt Starter Generator (BSG). This water-cooled unit is responsible for start-stop behavior, smooth restarts, energy recuperation, and maintaining the 48V battery’s charge.
When this system is healthy, it improves drivability and efficiency. When it fails, it can feel dramatic—because the 48V system doesn’t exist in isolation. It interacts with the 12V system via a DC/DC converter, and the entire vehicle depends on stable power.
Why the BSG Keeps Failing
Many of the affected BSG units (notably certain Continental-supplied versions) can fail due to thermal and electrical stress. High current flow during repeated restart and charging events can overheat internal power electronics. When the BSG or its internal control electronics degrade, the system can stop charging correctly.
Here’s why that becomes a cascading problem: when the BSG stops functioning, the 48V battery can drain. As it drains, the DC/DC converter may no longer support stable 12V system voltage. And once the 12V system becomes unstable, modules across the car begin dropping offline or reporting faults.
Drivers often see a chain reaction of warnings—steering faults, electrical system faults, drivetrain errors, and differential faults—followed by a no-start condition. It can look like the entire car “caught a virus,” but the root cause can be the 48V supply collapsing.
Typical early symptoms include:
- Intermittent “Drive System Malfunction” warnings that clear temporarily
- Start-stop behaving inconsistently or stopping completely
- Flickering dash illumination or multiple unrelated electrical warnings
- Random shutdown events followed by a failure to restart
From a diagnostic perspective, this is one area where voltage logs and freeze-frame data are extremely useful. If the system voltage dips below thresholds, modules will flag communication issues even though the wiring is fine.
The Fix and What It Costs
Audi released Service Action 27BQ to address this problem. The service action involves replacing failed BSG units with updated hardware and applying software updates to modules such as the Gateway and Engine Control Module where needed. Importantly, Audi extended warranty coverage for these components to 7 years with unlimited mileage (as described in the action), which can dramatically reduce owner cost when the vehicle is eligible.
If you’re experiencing random shutdowns, flickering dash lights, repeated drivetrain warnings paired with electrical “gremlins,” or a no-start event after warnings, the BSG/48V system should be near the top of your suspect list—especially on the affected model years.
Expert move: before authorizing expensive drivetrain parts, confirm whether your VIN is covered by the service action and whether the vehicle has logged 48V system faults. Many owners waste money on unrelated repairs because the 48V collapse creates secondary symptom codes that mislead generic diagnostics.
The Water Pump Problem Destroying EA839 Engines
Owners of Audi S4, S5, RS5, and SQ5 models equipped with the EA839 2.9T or 3.0T V6 face a different kind of drive system malfunction trigger: coolant migration into the vacuum system. This is one of those problems that sounds bizarre until you understand the design.
In simple terms: a component that should keep coolant and vacuum separated can begin leaking internally. Once that happens, the engine vacuum system can pull coolant into places that were never designed to handle liquid coolant.
How Coolant Gets Where It Shouldn’t
These engines use a vacuum-operated water pump design that includes a slide valve that stays closed during cold starts (depending on operating strategy). When internal seals degrade, pressurized coolant can leak into a chamber that interfaces with vacuum control. Engine vacuum can then draw that coolant into vacuum lines.
Once coolant enters vacuum lines, it can contaminate and damage vacuum-actuated control components—especially valves and solenoids responsible for turbocharger boost regulation. That contamination can lead to boost control faults and underboost behavior, commonly setting codes like P0299 (underboost) and triggering the drive system malfunction warning.
From the driver seat, this may feel like “the turbo stopped working properly,” because the engine can’t achieve requested boost and torque.
Spotting the Problem Early
Early detection matters because vacuum contamination often spreads. If you catch it early, you may prevent a chain reaction of component failures.
Signs worth taking seriously include:
- Reduced power under acceleration (especially mid-range torque loss)
- Coolant smell near the engine bay without an obvious external leak
- Visible moisture or residue in vacuum lines or vacuum reservoirs
- Repeated underboost codes that return after clearing
The fix frequently involves replacing the water pump with the updated design (you’ll often hear references to newer pulley hardware), replacing contaminated vacuum lines and reservoirs, and replacing any valves/solenoids that have been compromised by coolant exposure.
Expert advice: if your shop diagnoses underboost on these engines, ensure they look beyond “turbocharger is bad” as the first conclusion. Boost faults are often control faults, not turbo mechanical failure. Verifying vacuum system integrity and contamination can save thousands.
Transmission Mechatronic Failures You Need to Know About
Audi’s S‑tronic and DSG transmissions are engineering marvels when they’re healthy: fast shifts, strong torque handling, and efficiency benefits. But they also rely on a complex integrated component called the mechatronic unit—a combination of hydraulics, valves, sensors, and electronics that controls clutch engagement and shift strategy.
When the mechatronic unit develops faults, it can trigger drivetrain warnings and limp mode. It can also become an expensive repair if the failure is advanced or misdiagnosed.
What Goes Wrong Inside
The mechatronic unit contains fine solenoid valves and precision passages that depend on clean, stable transmission fluid. Over time—especially under heat and heavy use—fluid can degrade and carry debris. That contamination can clog valve behavior and disrupt clutch control.
Common symptoms include:
- Delayed engagement when selecting Drive or Reverse
- Harsh shifts or “thumps” during low-speed transitions
- Sudden lurching or hesitation (especially in stop-and-go)
- Gear selection errors or refusal to shift under load
Heat is a major contributor. In severe traffic, aggressive driving, or towing scenarios, temperatures can rise enough to stress electronic components and solder joints inside the mechatronic housing. Some faults show up when hot and disappear after cooling—one reason owners are told “we couldn’t duplicate the issue.” That’s why freeze-frame data and temperature logs matter.
| Repair Option | Cost Range | What You Get |
|---|---|---|
| OEM Dealer Replacement | $2,500 – $6,000 | New factory unit, fluid, coding, warranty |
| Remanufactured Unit | $1,600 – $3,100 | Refurbished with core exchange |
| Component-Level Repair | $600 – $1,200 | Targeted solenoid or board fixes |
| Used/Salvage | $400 – $800 | High risk, unknown history |
Costs vary by model, transmission type, and labor rates, but the table reflects the real landscape: dealer replacement is the most predictable in warranty terms, remanufactured units can be excellent if sourced from reputable rebuilders, component-level repair can be cost-effective when a specialist confirms a localized failure, and salvage units are a gamble (and often need coding anyway).
Diagnostic Clues
A proper scan tool can show clutch adaptation and related values. If adaptations have reached maximum thresholds, that can indicate clutch wear rather than a purely electronic fault. If solenoid response times and pressure regulation values are out of specification, the mechatronic unit becomes more likely.
Expert note: DSG/S‑tronic problems are often misdiagnosed when only generic codes are read. VAG-specific scanning (ODIS, VCDS, OBDeleven with the right modules, or pro-level scan tools) is essential because it reveals subcodes and measured value blocks that generic readers cannot display.
Turbocharger and Boost Control Issues
Turbocharged Audis deliver a lot of performance from relatively small displacement, but that performance depends on accurate boost control. When boost regulation fails—either by underboost or overboost—the torque model no longer matches reality, and the PCM responds by setting faults and reducing power.
Boost control problems can be mechanical (wastegate hardware wear) or electronic (actuator faults, sensor faults, wiring issues). They can also be caused by air leaks or vacuum leaks, which are often cheaper fixes than a turbo replacement.
Wastegate Problems That Trigger Warnings
The wastegate regulates how much exhaust energy is allowed to drive the turbocharger. If it can’t seal correctly, the turbo can’t build requested boost. On EA888 2.0T engines (common in A4, A5, Q5), heat cycles can wear pivot points, bushings, and linkage components. This can create a rattling noise and prevent full closure, leading to underboost codes like P0299.
On the other end of the spectrum, a wastegate can seize closed. That can cause overboost. When the PCM detects overboost via pressure sensors, it cuts torque to protect the engine—often very quickly—because uncontrolled boost can lead to detonation and serious engine damage.
Electronic wastegate actuators can also fail. Some use internal gear mechanisms that can degrade under heat. Stripped gears or motor faults can set control-circuit codes like P0045 (boost control circuit open) and trigger the drive system malfunction warning.
Audi has also released software updates on certain models to reduce false-positive warnings caused by minor voltage events or calibration sensitivity—another reason software status checks belong in the diagnostic process before expensive parts replacement.
Engine Misfires and Ignition System Failures
A flashing check engine light paired with a drive system malfunction warning is one of the most urgent combinations you can see. It usually indicates an active misfire severe enough to risk damaging the catalytic converter. Raw, unburned fuel entering the exhaust can overheat and melt catalyst substrate quickly.
Why Misfires Trigger Major Warnings
Audi engines—especially performance variants—operate under high cylinder pressures. That means ignition components must deliver strong spark energy consistently under load. As spark plugs wear, gap grows, resistance increases, and coils work harder to deliver the same spark.
A coil can appear “fine” at idle and light throttle, then fail when boost and cylinder pressure rise. The PCM detects the power loss and crankshaft speed variation and responds quickly with a warning and torque reduction strategy to protect emissions hardware.
Misfire triggers include:
- Worn spark plugs or incorrect plug specification
- Ignition coil degradation
- Fuel injector issues (including carbon-related spray pattern problems)
- Vacuum leaks or boost leaks causing lean conditions
- PCV system faults affecting mixture stability
The correct fix depends on evidence—misfire counters by cylinder, fuel trims, plug inspection, and coil testing. Blindly replacing parts can become expensive quickly on modern engines.
Variable Valve Timing Complications
Audi’s variable valve timing and lift strategies (including AVS in certain engines) rely on oil pressure and oil quality. If oil level is low, oil is sludged, or viscosity is incorrect, cam phasers and control solenoids may respond too slowly or overshoot targets.
This can trigger codes like P0011 (cam timing over-advanced) and can cause immediate torque reduction because the PCM wants to prevent mechanical interference and protect engine durability.
Oil-related drivability issues are often dismissed because the engine “still runs.” But in modern engines, oil is not only lubrication—it’s a control medium. Wrong oil can be a drivability problem, not just a wear problem.
| Trouble Code | What It Means | Common Fix |
|---|---|---|
| P0300 | Random cylinder misfire | Replace spark plugs and coils |
| P0011 | Cam timing over-advanced | Check oil level, clean VVT solenoid |
| P0299 | Turbo underboost | Fix vacuum leaks or wastegate |
| P0045 | Boost control circuit open | Replace electric wastegate actuator |
Use the table as a starting point, not a final answer. For example, P0299 can be wastegate-related, but it can also come from charge pipe leaks, diverter valve issues, or control solenoid faults. The best diagnosis uses live data and plausibility checks.
The Audi A3 Fuel System Fire Hazard
If you own a 2015–2020 Audi A3, you may have a known issue involving the fuel tank suction jet pump addressed under Safety Recall 20YF. The recall documentation is here: fuel tank suction pump problem.
This one is important because it isn’t just a drivability nuisance—it can be a genuine safety hazard if ignored.
What’s Actually Failing
A seal inside the fuel tank suction jet pump can fail, allowing liquid fuel to bypass intended vapor pathways and saturate the charcoal canister. The charcoal canister is designed for vapor storage, not liquid fuel storage. When flooded, it can create fueling and purge irregularities and—more importantly—increase fire risk under certain conditions.
This failure can trigger drivetrain warnings and EVAP-related codes, and it can make the car behave oddly after refueling.
Warning Signs
Common symptoms include:
- Fuel nozzle repeatedly clicks off while filling (can’t refuel normally)
- Fuel backs up or spills near the filler neck
- Strong fuel odor near the right rear wheel or inside the cabin
- Engine stumbling after refueling (purge system ingesting liquid fuel)
Audi will replace the suction pump assembly under the recall where applicable. If you suspect this issue, treat it as a priority safety matter and check recall status via VIN.
How to Actually Diagnose the Problem
Generic OBD readers are often insufficient for Audi diagnosis because they may not access manufacturer-specific fault details, extended freeze frames, or subsystem modules. For meaningful diagnosis, you need a scan tool that can access VAG modules and present data in a way that supports decision-making.
Ideally, the vehicle is scanned with software such as ODIS (Offboard Diagnostic Information System), or a capable VAG-compatible tool that can read the drivetrain, transmission, gateway, and body modules—not just engine codes.
The Right Diagnostic Process
A proper diagnostic approach looks like this (reordered for efficiency and to minimize wasted labor):
- Start with a full system scan (not only the engine module). Many drivetrain warnings originate in the gateway, transmission, or hybrid system modules.
- Review freeze frame data showing what the car was doing when the warning triggered: RPM, load, ECT, IAT, boost pressure, voltage, gear state.
- Evaluate battery and voltage stability early. Low voltage and poor grounds create misleading symptom codes. Test the 12V battery under load and inspect main grounds for corrosion.
- Check for known campaigns/recalls/service actions based on VIN (48V BSG action, A3 suction pump recall, etc.).
- Verify basics before parts replacement: check fluid levels (oil/coolant), boost/vacuum leaks, wiring integrity, and connector seating.
- Use guided tests where available (actuator tests, output tests, boost control tests, EVAP tests, adaptation checks).
Check your 12V battery first. A weak battery causes voltage sags that trigger false warnings even when everything else works perfectly. In modern Audis, a voltage dip isn’t “just a battery issue”—it’s a data issue that can cause multiple modules to flag errors and set a drivetrain malfunction message.
Don’t forget rodents. Modern wiring insulation can be attractive to animals. A single damaged wire on a communication network can trigger unrelated warnings across multiple systems. If faults appear random, inconsistent, or spread across unrelated modules, wiring inspection becomes more important.
Software Updates Before Parts Replacement
Before replacing major mechanical components, confirm whether software updates are available. In the modern automotive world, calibration changes can fix drivability complaints, torque model mismatches, and false-positive fault logic without replacing hardware.
For example, TSB 24FG addresses certain drivability issues in 2019 S4/S5 models that were being misinterpreted as hardware failures. When a TSB exists for a symptom set, it doesn’t guarantee your car matches it—but it strongly suggests that “replace parts first” is not the best first step.
Expert tip: when dealing with a drivetrain malfunction, always ask a shop: “Have you checked for software updates and campaigns tied to this VIN?” A good shop will do this early.
Understanding Dashboard Warning Light Colors
Not all warnings carry the same urgency. Audi uses color logic to communicate severity—this is one of the most useful “at-a-glance” tools you have as a driver.
Here’s what the colors generally mean:
| Light Color | Severity Level | What to Do |
|---|---|---|
| Green/Blue | Info only | Normal operation, no action needed |
| Yellow (steady) | Warning | Schedule service soon, avoid hard driving |
| Yellow (flashing) | Urgent | Reduce load immediately, active misfire detected |
| Red | Critical | Stop safely, shut down engine, call for tow |
A steady yellow warning usually means a system has detected an out-of-range condition but is still operating in a managed protective mode. A flashing yellow often means active misfire and the risk of converter damage. Red means you should stop as soon as it’s safe, because the system cannot guarantee continued operation without risk.
What Repairs Actually Cost
Costs are where owners can get blindsided. Dealer labor rates vary widely by region, and diagnostic fees can feel high if you’re expecting a quick scan-and-go.
Urban Audi dealers commonly charge $180–$325 per hour. Diagnostic fees can range from roughly $200 to $665 depending on region and shop policy, and that’s before any repair begins. Independent “VAG specialist” shops often charge significantly less (commonly 30–40% less) while using comparable diagnostic methods—sometimes including ODIS access, depending on the shop.
When you’re facing expensive repairs like a DSG mechatronic unit or a 48V BSG event, you should compare both dealer and independent specialist quotes. The parts may be identical or functionally equivalent, but labor costs and shop policies can change your total dramatically.
Expert money strategy: pay for a proper diagnosis once. It’s usually cheaper than paying for the wrong parts twice. A good diagnostic session should include a documented scan printout, freeze-frame review, and a clear explanation of what evidence supports the recommended repair.
Your Legal Options for Repeat Failures
If your Audi has been in the shop multiple times for the same drive system malfunction and the problem isn’t resolved, you may have consumer protection options depending on your state and the age/mileage of the vehicle. In some cases, repeated unrepairable issues can qualify under lemon law provisions.
Building Your Case
Whether or not you ever need legal support, documentation is power. If the problem becomes a repeat failure, you’ll be grateful you tracked details from the beginning.
Best practices:
- Record every event: date, time, mileage, outside temperature, driving conditions, symptoms (stalling, loss of power, no-start).
- Capture evidence: photos or short videos of the dash message and any related warnings.
- Keep every repair order: ensure it lists your complaint clearly, not just “check vehicle.”
- Track downtime: many lemon laws consider cumulative days out of service and repeated repair attempts for the same issue.
If your car has been in the shop for 30 cumulative days or has had repeated repair attempts for the same safety-related issue, you may qualify for remedies under your state’s laws. Consult local rules and a qualified professional if you reach that point.
What’s Coming for Future Models
Audi’s continuing shift toward electrification and software-heavy architectures will change how drivetrain warnings work. Over-the-air updates will likely resolve more calibration and logic issues without requiring physical service visits. However, the used market will still feel the effects of current weak points—particularly 48V system issues and certain engine cooling/vacuum-related failures—because those vehicles will remain on the road for many years.
Engineering responses typically include stronger seal materials, revised pulley and pump designs, improved power electronics cooling, and refined calibration strategies that reduce false-positive warnings. Still, if you are shopping for a used Audi from roughly 2019–2024, it’s wise to budget for the possibility of BSG and water pump-related service unless the VIN shows completion of the relevant campaigns and the vehicle has a strong maintenance record.
Ultimately, the drive system malfunction warning is your Audi’s way of protecting expensive components through active monitoring and intervention. Understanding what triggers it—from a $30 spark plug to a multi-thousand-dollar mechatronic unit—helps you move past dashboard panic and toward a real solution. The moment you start thinking in terms of systems (48V power stability, vacuum/boost control, transmission control, ignition integrity), you can ask the right questions and avoid unnecessary repairs.
