The coolant temperature sensor is one of the most influential “small parts” in the entire engine management system. Even though it’s physically compact, its data helps the ECU decide how the engine should behave from a cold start to full operating temperature. In most vehicles, the sensor is a temperature-sensitive resistor (a thermistor). As engine temperature rises, the sensor’s internal resistance typically drops; when temperature falls, resistance rises. In practical terms, higher coolant temperatures generally mean lower resistance across the sensor’s terminals, while colder coolant means higher resistance.
That relationship matters because your cooling system depends on accurate temperature information to maintain stability. Coolant/antifreeze is responsible for carrying heat away from the engine and keeping operating temperatures within a safe, efficient range. The coolant temperature sensor doesn’t just “correct anomalies” after the fact; it helps the ECU recognize whether the engine is warming up normally, overheating, running too cool, or behaving in a way that suggests a cooling-system fault. In other words, it acts like the engine’s temperature truth-teller—quietly reporting what’s really happening inside the coolant passages.
Here’s the twist: people often ask whether the coolant temp sensor can be bypassed. The answer is that it can be bypassed in certain scenarios, but that doesn’t mean it should be. If you’re curious about what bypassing involves, what it does to ECU logic, and why it’s generally considered a last-resort tactic, follow along. I’ll walk you through the process that’s commonly described as a “bypass,” explain what’s happening electrically, and cover key warnings and alternatives you should consider before you touch a single wire.

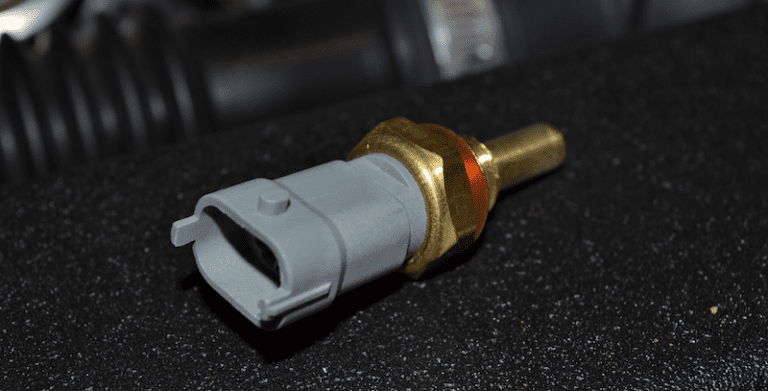

What is Coolant Temperature Sensor and how does it work?
The coolant temperature sensor functions as an engine management sensor, which is why many technicians refer to it as an ECU input rather than a simple “gauge sender.” In many resources, it’s also called the engine coolant temperature switch (ECTS). Its job is to track the temperature of your engine’s coolant and translate that temperature into an electrical signal the ECU can interpret. As coolant temperature changes, the sensor changes its resistance, which changes the voltage signal the ECU sees. In that sense, the coolant temperature sensor behaves like a thermistor—essentially a temperature-controlled resistor that “speaks” to the ECU in the language of voltage.
On a modern fuel-injected engine, the ECU does not simply guess coolant temperature; it calculates it from the sensor signal. Typically, the ECU supplies a reference voltage (commonly around 5V) through an internal pull-up resistor, and it reads the voltage drop created by the sensor’s resistance. When the engine is cold, the sensor resistance is higher, the voltage signal tends to read higher, and the ECU interprets that as “cold engine.” As temperature rises, resistance drops, signal voltage drops, and the ECU interprets that as “warming up” or “hot engine,” depending on the value.
This sensor measures the temperature of coolant/antifreeze circulating in the cooling system. It continuously reports coolant temperature to the ECU, helping the computer confirm that the engine is operating within the intended temperature window. That window matters for durability, emissions, drivability, and fuel economy. An engine that runs too cool often burns fuel inefficiently and builds deposits; an engine that runs too hot risks severe damage. The ECU relies on accurate coolant temperature input to keep the engine in the “safe and efficient” middle ground.
Coolant temperature sensors work by using electrical resistance to reflect temperature changes in the coolant. In plain terms, the sensor gives the ECU an estimate of how much heat the engine is producing and how effectively the cooling system is carrying that heat away. Based on this signal, the computer can command changes to major engine functions so the system performs optimally. Timing strategy, an on/off control logic (depending on the vehicle’s design), electric cooling fan behavior, and fuel injection calculations are all influenced by coolant temperature. It’s also important to remember a key fueling principle: engines generally need more fuel when cold and less fuel once fully warmed up. That is why a wrong temperature signal can distort fuel mixture and drivability so dramatically.
Inside the coolant temperature sensor (CTS) is commonly a Negative Temperature Coefficient (NTC) element. An NTC thermistor is a variable resistor whose resistance decreases as temperature increases. So, as the engine heats up, the measured resistance inside the sensor goes down, the signal voltage typically drops, and the ECU updates its operating strategy accordingly. The CTS may also be discussed alongside a Positive Temperature Coefficient (PTC) behavior in some contexts or related circuits. PTC operates in the opposite direction—when temperature rises, resistance rises. The crucial point is that the ECU expects a specific resistance/temperature curve. If the curve is wrong (because the sensor is faulty or the circuit is altered), the ECU can be misled.
To appreciate why bypassing is risky, you need to understand what the ECU does with coolant temperature data. This sensor is often used to control or influence:
• Cold-start fueling and enrichment: When the engine is cold, additional fuel helps stabilize combustion. If the ECU thinks the engine is colder than it is, it may enrich the mixture too much, causing rough running, poor mileage, soot, and catalyst stress.
• Idle speed strategy: Many engines idle higher when cold and gradually drop to normal idle speed as temperature rises. If the ECU receives a false temperature, the idle may stay high or become unstable.
• Ignition timing and knock strategy: Timing maps can be influenced by temperature. Some engines reduce timing when hot to protect components. If the ECU “believes” the engine is cooler than it is, it may run timing that increases risk under heat.
• Electric cooling fan operation: Many ECUs use coolant temperature input to trigger fan stages. A bypass can prevent the fan from activating when needed—or can make it run constantly, depending on how the bypass is done.
• Closed-loop operation and emissions behavior: The ECU often waits until a certain coolant temperature before switching to closed-loop fueling using the oxygen sensors. A bypass can keep the ECU in open loop longer, increasing emissions and fuel consumption.
• Dashboard gauge or warning logic (on some vehicles): Some vehicles use a dedicated gauge sender for the dash, while others share the same sensor data between ECU and instrument cluster. That design difference matters a lot if someone attempts a bypass.
So while bypassing may sound like a simple workaround, it’s actually an attempt to “fake” a sensor signal that your ECU relies on for multiple critical decisions.
Steps to Bypass the Coolant Temperature Sensor
Before we get into the how-to details, I want to challenge the “why.” Why bypass the coolant temperature sensor when it plays such a central role in engine protection, fueling accuracy, and overall drivability? If your CTS is faulty, the professional approach is to diagnose the circuit and replace the sensor (or repair wiring) rather than bypass it. In real-world repair practice, bypassing is generally not recommended because it can lead to poor performance, overheating risks, excessive fuel consumption, and potentially expensive engine or emissions-system damage.
From hands-on experience, bypassing the coolant temperature sensor is best viewed as a temporary diagnostic experiment or an emergency measure—never a proper repair. It’s advisable to consult a qualified auto mechanic or seek professional help if your CTS is failing, especially because many temperature-related symptoms can also be caused by wiring faults, connector corrosion, thermostat issues, air trapped in the cooling system, or even a failing water pump. If you bypass the sensor and the engine behaves “differently,” that doesn’t automatically prove the sensor is the only problem.
If you still want to bypass the coolant temperature sensor, below are the steps that are commonly described for a basic bypass. Keep in mind: different vehicles use different sensor types (two-wire NTC sensors, one-wire gauge senders, dual sensors, or sensors integrated into housings). Always verify your vehicle’s wiring diagram before attempting any modification.
Step 1: Remove the temperature coolant sensor. The sensor is commonly located near the thermostat housing at the engine (exact location varies by vehicle). Work only on a cool engine and relieve cooling-system pressure safely if the sensor is in a pressurized area.
Step 2: Unplug the wiring harness carefully. Disconnect the sensor connector without yanking on the wires. This step separates the sensor from the circuit and leaves the harness side available for whatever “substitute” connection you intend to use.
Step 3: Install two jumper wires as a substitute for the sensor. These jumper wires are used to create an alternate path in the circuit in place of the sensor’s normal resistance behavior.
Step 4: Connect one end of the wire to the ground source. Ground quality matters; a poor ground can create unstable readings and unpredictable ECU behavior.
Step 5: Connect the other end to the wire harness, where you removed the sensor. Make sure the connection is secure and insulated appropriately to avoid short circuits against metal engine components.
Step 6: Start the engine, then check and observe the temperature gauge that displays on the dash (if your vehicle’s gauge relies on that circuit). Also pay close attention to idle behavior, fan operation, and any warning lights.
An accurate gauge reading means that your coolant temp bypass is successful (in the limited sense that the circuit is responding in a way that produces a gauge reading). However, a “normal-looking” gauge does not guarantee the ECU is receiving the correct temperature information or managing the engine safely.
Step 7: Observe the engine temperature carefully. Watch for steam from under the hood, coolant smell, boiling sounds, or any sign of overheating. Any steam indicates overheating and should be treated as an immediate warning to shut the engine down and investigate.
It’s also worth adding a professional note here: the method above is a very rough bypass concept and may not behave the way you expect on many vehicles. On ECU-controlled engines, the coolant temperature sensor signal is not simply “on or off.” It’s an analog value the ECU interprets precisely. A true “simulation” usually requires a resistor of a specific value (or a variable resistor) to mimic a target temperature. Jumping wires to ground can create extreme readings (such as “fully hot” or “fully cold,” depending on circuit design), which can force the ECU into an abnormal strategy and trigger diagnostic trouble codes.
If your goal is diagnosis rather than improvisation, a safer and more controlled approach is to test the sensor and wiring properly. That typically includes scanning live data with an OBD tool (to see the ECU’s reported coolant temperature), measuring resistance across the sensor with a multimeter at known temperatures, and verifying reference voltage and ground integrity at the connector. Those steps are not only more accurate—they also reduce the chance of causing collateral damage.
In other words: bypassing is a shortcut, but diagnostics is the solution. The shortcut is rarely cheaper if it leads to an overheated engine, a fouled catalytic converter, or a vehicle that runs rich for weeks.
FAQs
Can I bypass the coolant temperature sensor?
There are no absolute “hard and fast rules” because the answer depends on the vehicle’s sensor design and how the ECU is programmed. That said, a coolant temperature sensor can sometimes be bypassed in a basic way—either by unplugging it, or by attempting a substitute connection like the steps described above. Just be aware that bypassing can void warranties or guarantees, and it can create new problems that are more expensive than replacing the sensor.
If you choose to bypass the coolant temperature sensor, expect side effects. The sensor is a key part of preventing overheating and controlling fuel strategy. As mentioned earlier, bypassing is not recommended because it can degrade drivability, increase fuel usage, and cause the ECU to make the wrong decisions. Also, some sensors are difficult to access, and some vehicles are not tolerant of missing or “faked” signals—meaning the ECU may set trouble codes, enter a default strategy, or operate the cooling fan incorrectly.
From an expert standpoint, if you are tempted to bypass a CTS because you suspect it is giving bad readings, the most meaningful “bypass” is often a controlled simulation: using a known-good resistor value (or a variable resistor) to mimic a realistic coolant temperature, while monitoring live data. That approach is diagnostic in nature, and it is far less risky than improvising ground jumps that can create extreme, unrealistic readings.
Does the coolant temperature sensor affect my fuel?
Yes—coolant temperature has a direct impact on fuel calculations. One of the classic symptoms of a failing coolant temperature sensor is increased fuel consumption. When the temperature signal is inaccurate, the ECU may respond with an imbalanced strategy. That imbalance can increase fuel usage, reduce power, cause hesitation, and create rough idle. Over time, the overall effect is poor engine performance and unnecessary stress on emissions components.
When the coolant temperature sensor is faulty, it can trigger a chain of problems. The ECU uses the sensor’s signal to decide whether engine timing should change and how much fuel to inject under various conditions. If the ECU receives an incorrect temperature value, it may enrich the fuel mixture as if the engine were cold. That can extend or disrupt the combustion process and make the engine run poorly. In some cases, a rich mixture can foul spark plugs, accelerate carbon buildup, and overheat or damage the catalytic converter. In other cases, if the ECU believes the engine is hotter than it truly is, it might reduce enrichment during cold start and create hard starting, stumbling, or stalling until the engine actually warms up.
Fuel economy issues caused by CTS faults are not always subtle. Depending on how wrong the signal is, a vehicle may consume significantly more fuel than normal, especially in stop-and-go driving where warm-up enrichment plays a bigger role. This is one reason why replacing a faulty coolant temperature sensor is often one of the best “cost-to-benefit” repairs you can make when diagnosing mileage loss.
Can I drive with a faulty coolant temperature sensor?
Yes, it’s possible to drive with a defective coolant temperature sensor, but it’s generally not appropriate to do so for long. The main risk is that the engine may run rich or operate with incorrect timing and fan control because the ECU is no longer receiving accurate temperature feedback. Remember: the sensor is designed to send accurate signals to the ECU so the computer can initiate major changes and correct deviations. Without that accurate input—either because the sensor is bad or because it has been bypassed—the ECU’s interaction with the engine becomes less precise, and the computer may default to a strategy that compromises efficiency and performance. Timing can become unbalanced, and fuel calculations can be distorted.
A faulty coolant temp sensor can also contribute to carbon buildup, which can eventually cause severe damage. The positive side is that these sensors often fail with warning signs rather than instant catastrophic failure. Common warnings may include poor fuel economy, rough cold starts, cooling fan problems, erratic gauge behavior (depending on design), and a check engine light with temperature-related codes. The correct response is diagnosis and repair—not bypassing as a permanent “fix.”
As a practical guideline, if the vehicle is overheating or you suspect a cooling-system fault, do not continue driving simply because the car still “runs.” Overheating can warp cylinder heads, damage head gaskets, and ruin an engine quickly. A temperature sensor problem is inexpensive compared to the cost of overheating damage.
Final Words
As I wrap up this discussion, my professional advice is simple: do everything you reasonably can not to bypass your coolant temperature sensor. This component is critical to the way the engine protects itself and performs efficiently. The cost of replacing a coolant temp sensor—or repairing its wiring—is usually far lower than the cost of damage caused by running with inaccurate temperature feedback. Even when you are not aware that your engine is approaching an unsafe temperature, the temperature sensor is designed to detect it and report it. When the coolant temp sensor fails, it can send the wrong signal to the ECU, and the engine management system may respond in ways that harm performance, fuel economy, and reliability. I hope you found this guide helpful, and if you’re dealing with CTS symptoms, consider proper testing and replacement as the real solution.
